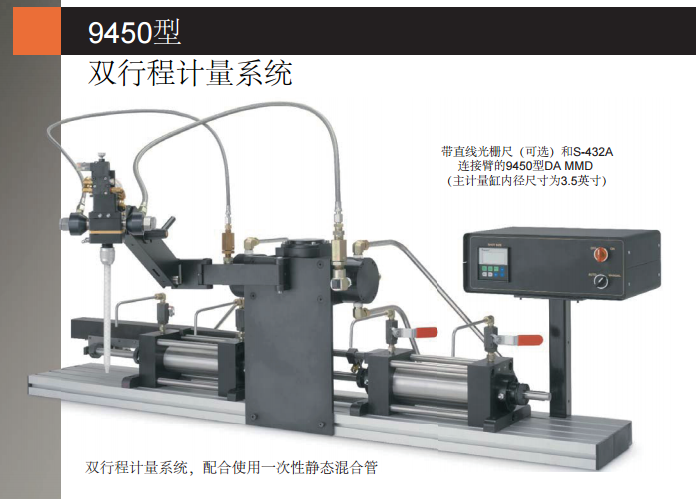

The system is suitable for batch or continuous injection applications, suitable for two-component epoxy polyurethane or silicone. Basic features: ? Various sizes of bores can meet different proportions of glue production ? Positive-displacement piston metering structure assures consistency of A/B rubber dispensing and the ratio is completely guaranteed by cylinder bore size ? Integral directional valve avoids the lack of float check valve ? A large amount of glue can be shot with a single stroke, which also means extremely low wear ? Stainless steel body, PTFE seal and nickel plated components ensure long-term reliable performance of the system, even in the face of abrasive materials. ? Double stroke design, intermittent or continuous injection ? Manual control or automatic injection ? The glue is always isolated before entering the mixing tube ? Use disposable static mixing tube without cleaning ? Can be fed from a pressure tank or pumped from a 5-55 gallon drum 9450-DA Specifications: Cylinder size (main measuring cylinder) .............3.500 inch Travel distance .................................................6 inches One-way maximum injection volume...................61 f . oz. / 1805 cc (1.1 ratio) QAL (substrate size) .........................................55 inches OAL substrate size (scale ruler) ..........................61 inches Optional items: ? grating ruler- Suitable for occasions with high requirements on the precision of glue injection, the positioning accuracy of the scale can reach up to 0.0008 inch ? Pump - Different sizes of delivery pumps can be used for 5-55 gallon drums, and platen pumps for high viscosity materials ? Feed tank- Vacuum deaeration- 2-60 Gallon Optional - Up to 150oF - Stirrer - Nitrogen Protection Interface - Level Control ? Heating type feeding tube- up to 20 feet Other options: ? system integration - Provide glue injection communication interface ? Mobile trolley- Satisfy your application needs and facilitate the long-distance transportation of tanks For pricing and ordering information, please contact us immediately |
