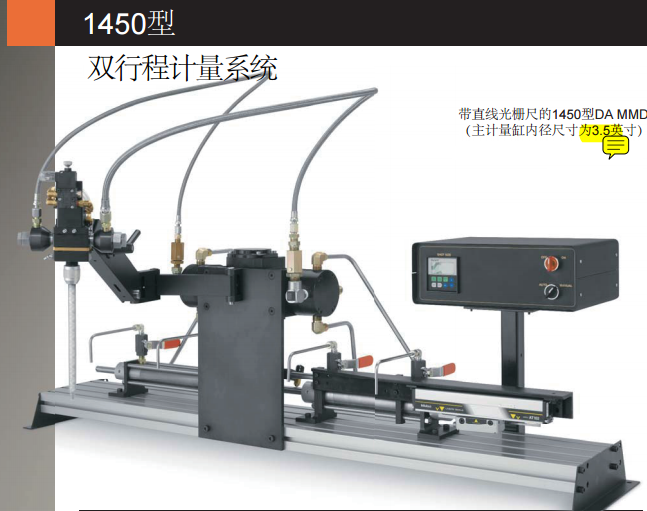

Used for batch or continuous injection applications for two-component epoxy, polyurethane, silicone and others Basic features: ? The measurement cylinder has a wide range of internal diameters and application ratios to meet a wide range of production applications. ? The positive displacement piston metering structure ensures the consistency of the A/B material, and the ratio is completely guaranteed by the cylinder bore size. ? The integral directional valve avoids the lack of a floating check valve. ? Two-stroke design allows for intermittent or continuous dispensing. ? Stainless steel body, PTFE seals and nickel plated components ensure long-term excellent performance of the equipment, even in the face of abrasive materials. ? A lot of glue can be shot on a single trip, which means extremely low sports wear. ? Can be controlled manually or automatically. ? The A/B glue is always isolated from each other before it enters the mixing tube. ? Use disposable mixing tubes without solvent cleaning. ? Can be connected to cans, 5 gal drums, 55 gal drums or other drums. 1450-DA Specifications: Main agent cylinder inner diameter: ........1.500 inch Travel distance: ..................................5 inches Full stroke volume (1:1 ratio): ...............8 f . oz. / 239 cc Board size: ........................................53 inches Substrate with scale: ..........................55 inches Optional items: ? grating ruler- Suitable for applications requiring precise control of the glue volume, the position accuracy of the scale can be up to 0.0008” (0.0004 optional) ? Pump components- For 5-gallon to 55-gallon packages, high-viscosity materials require a platen pump ? Feed tank- Vacuum deaeration 5-60 gallon-Heated to 150 °F - Stirrer assembly - Nitrogen protection connecting assembly (moisture sensitive glue) - Level control ? Heating pipe - up to 20 feet Other options: ? system integration - Provide glue injection system communication port ? Handling trolley- Satisfy your application needs and facilitate the long-distance transportation of tanks |
